57655 R2 Audio Panel Harness GMA245-340

April 02, 2024 18:56 Updated

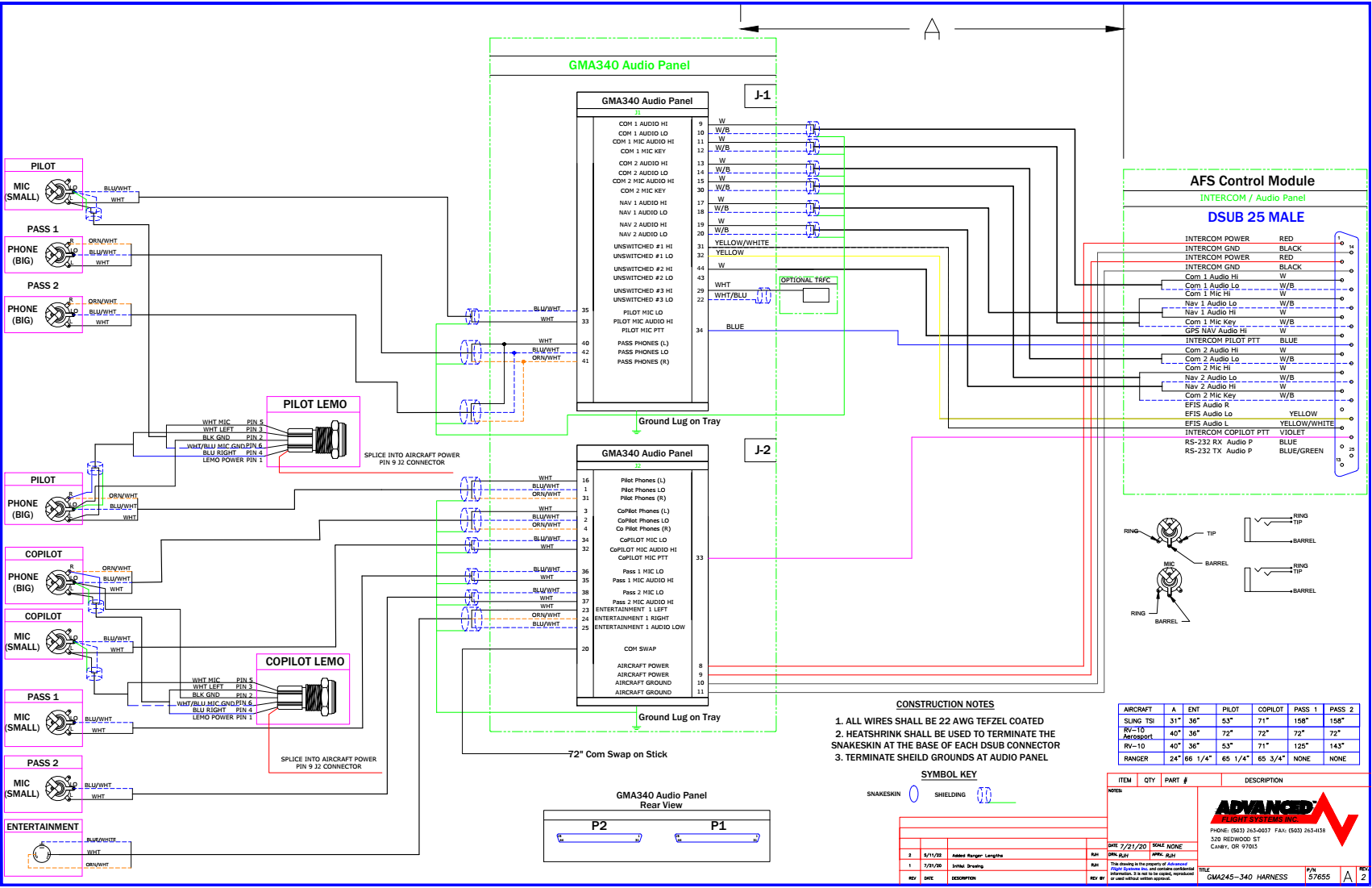

ACM to Garmin GMA245 and GMA340 audio panel harness.

57655 R2 Audio Panel Harness GMA245-340.pdf
400 KB Download
