57652 R6 Audio Panel Harness PAR200B

January 15, 2026 22:30 Updated

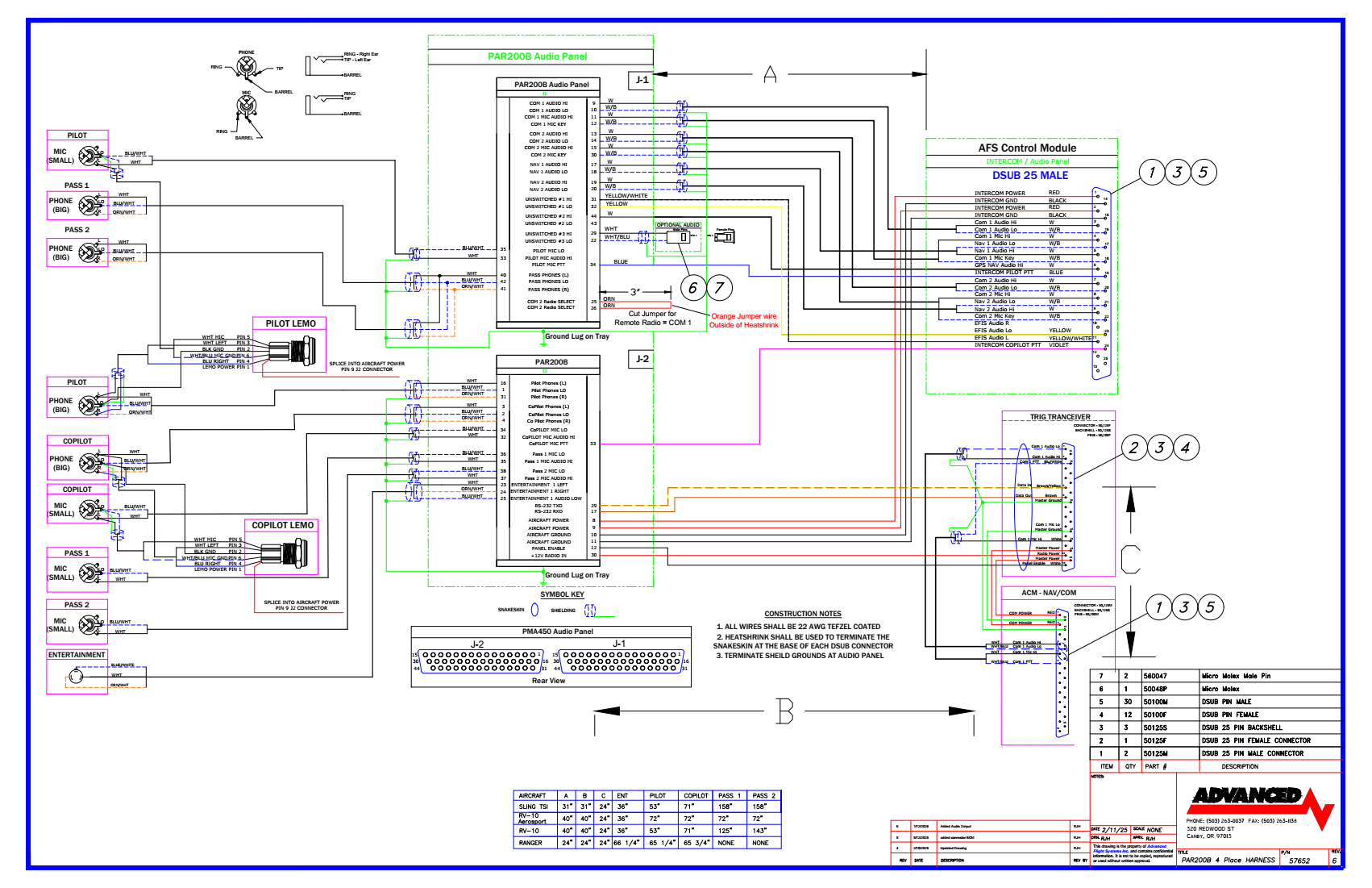

ACM to PS Engineering PAR200 audio panel + com harness.

57652 R6 Audio Panel Harness PAR200B 4 PLACE.pdf
500 KB Download
