57600 R5 Intercom Harness

April 02, 2024 18:56 Updated

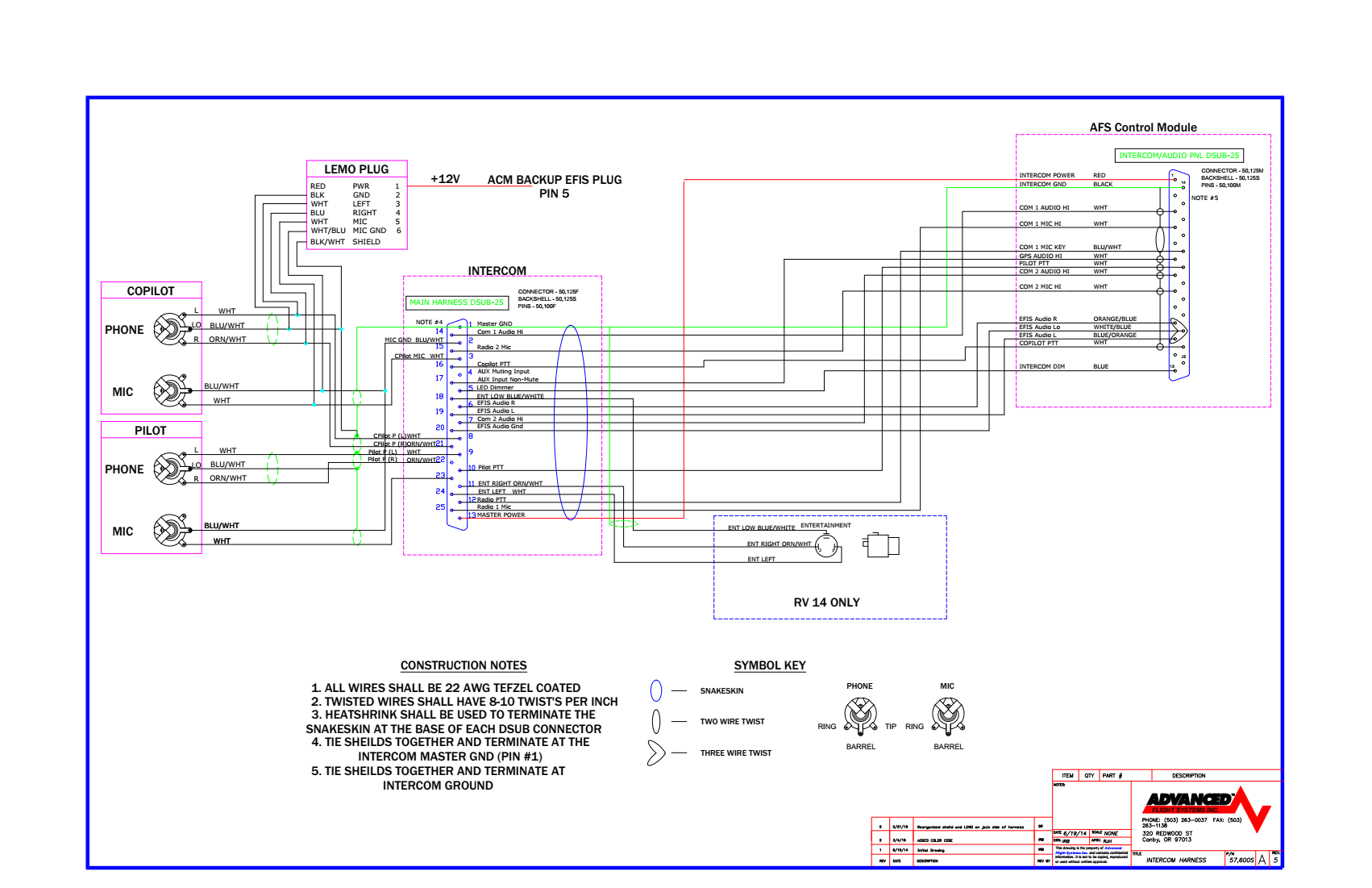

ACM to SkyView SV-INT-2S harness drawing.

57600 R5 Intercom Harness.pdf
100 KB Download
