57650 Audio Panel PAC15

September 25, 2025 21:59 Updated

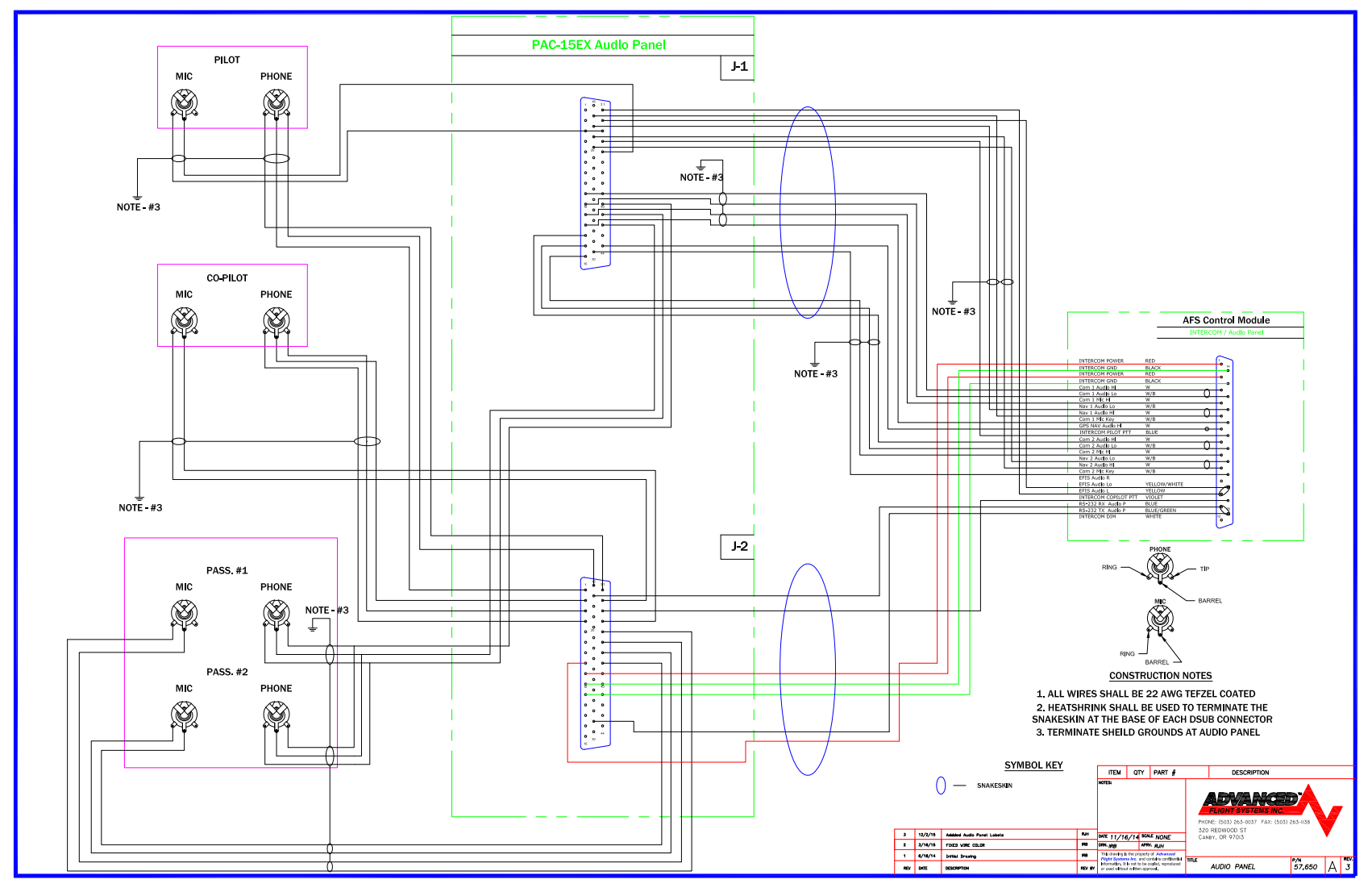

ACM to PAC15 audio panel harness

57650 Audio Panel PAC15.pdf
100 KB Download
