57890-RV10 ZipTip Vegas Wiring

May 04, 2026 23:50

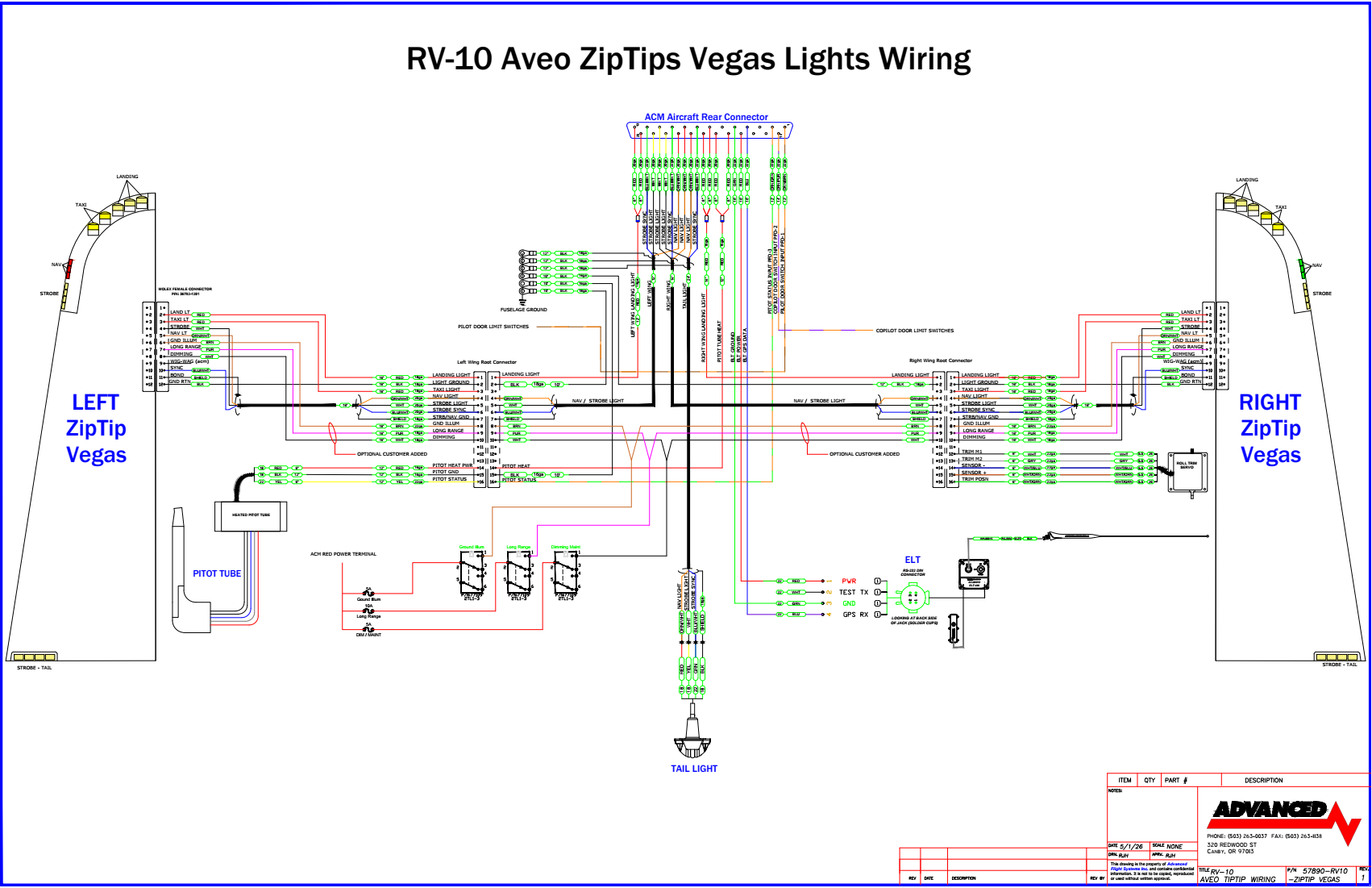

Wiring Ziptips Vegas lights to ACM.

57890-RV10-ZipTip Vegas Wiring.pdf
500 KB Download
