57850-RV10 R4 Aircraft Rear Harness
57840-RV10 R4 Aircraft Front Harness
57870-RV10 R4 Aircraft Flap and Trim Harness
57475-RV10 R6 ACM AP Servo Harness
57475--RV10-Update ACM AP Servo Harness to RV10
57890-RV10 R5 Wing Harness
57850-RV10-FlyLED R4 Wiring
57890-RV10-AerosunVXI R4 Wiring
57890-RV10-ZipTip R4 Wiring

57850-RV10-FlyLED R4 Wiring

April 02, 2024 18:53 Updated

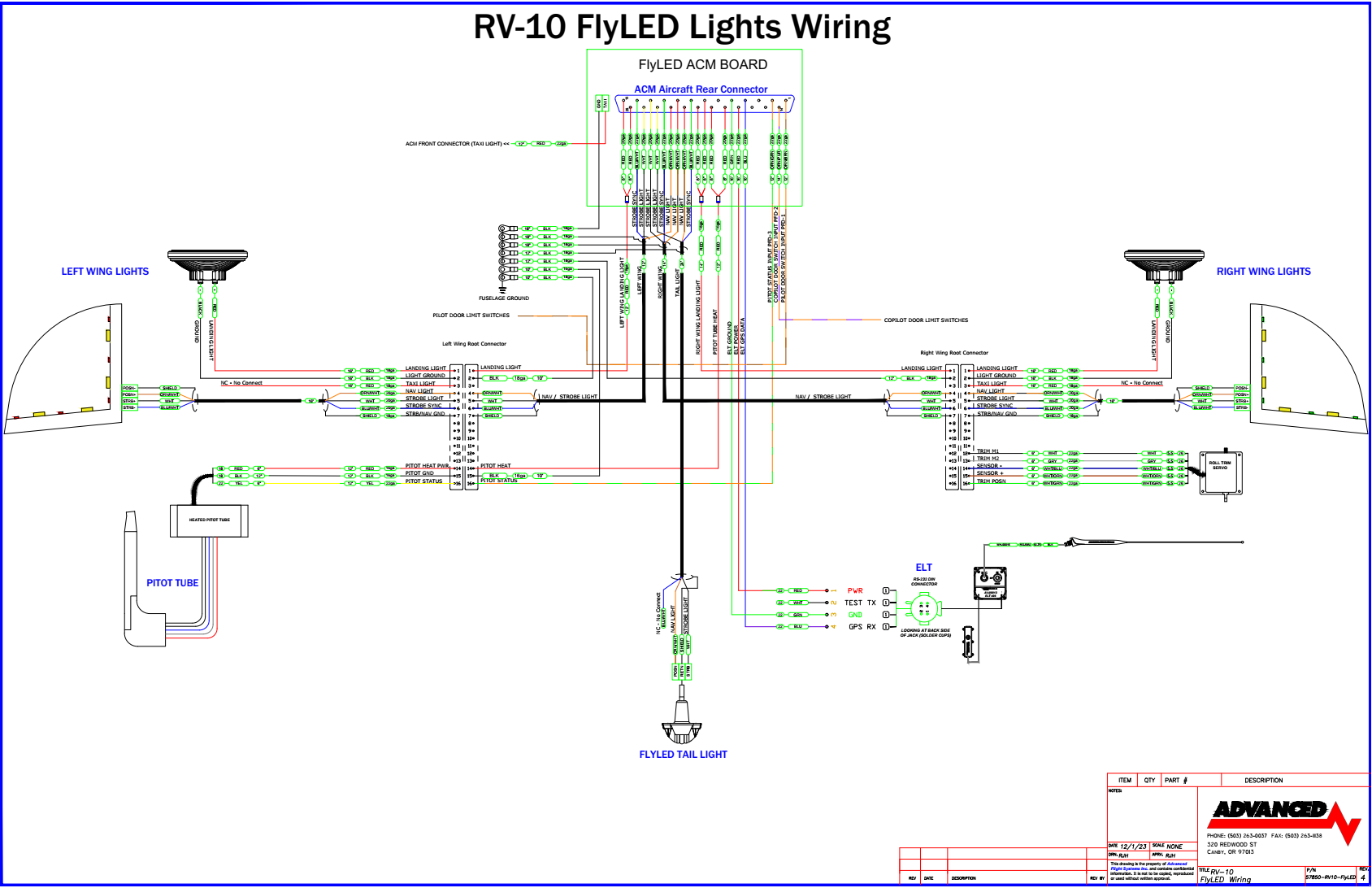

ACM Aircraft Rear and Wing Harness drawing for RV-10 with FlyLED lights.

57850-RV10-FlyLED R4 Wiring.pdf
