57850-RV10 R7 Aircraft Rear Harness

February 11, 2025 21:43 Updated

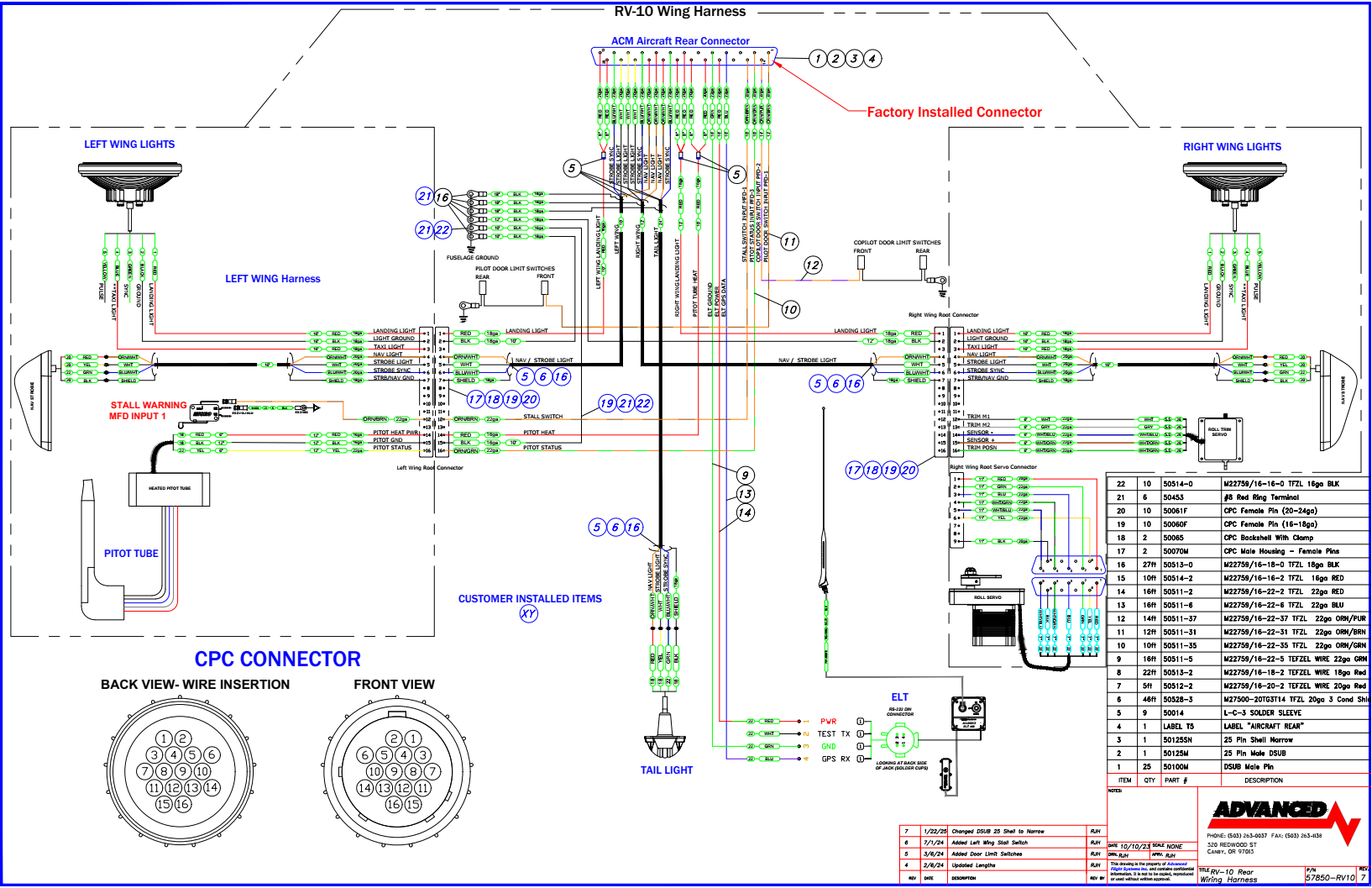

ACM Aircraft Rear Harness drawing for RV-10

57850-RV10 R7 Aircraft Rear Harness.pdf
600 KB Download
