57741 R2 ACM to Trig TX56 Nav-Com Intercom

January 15, 2026 22:34

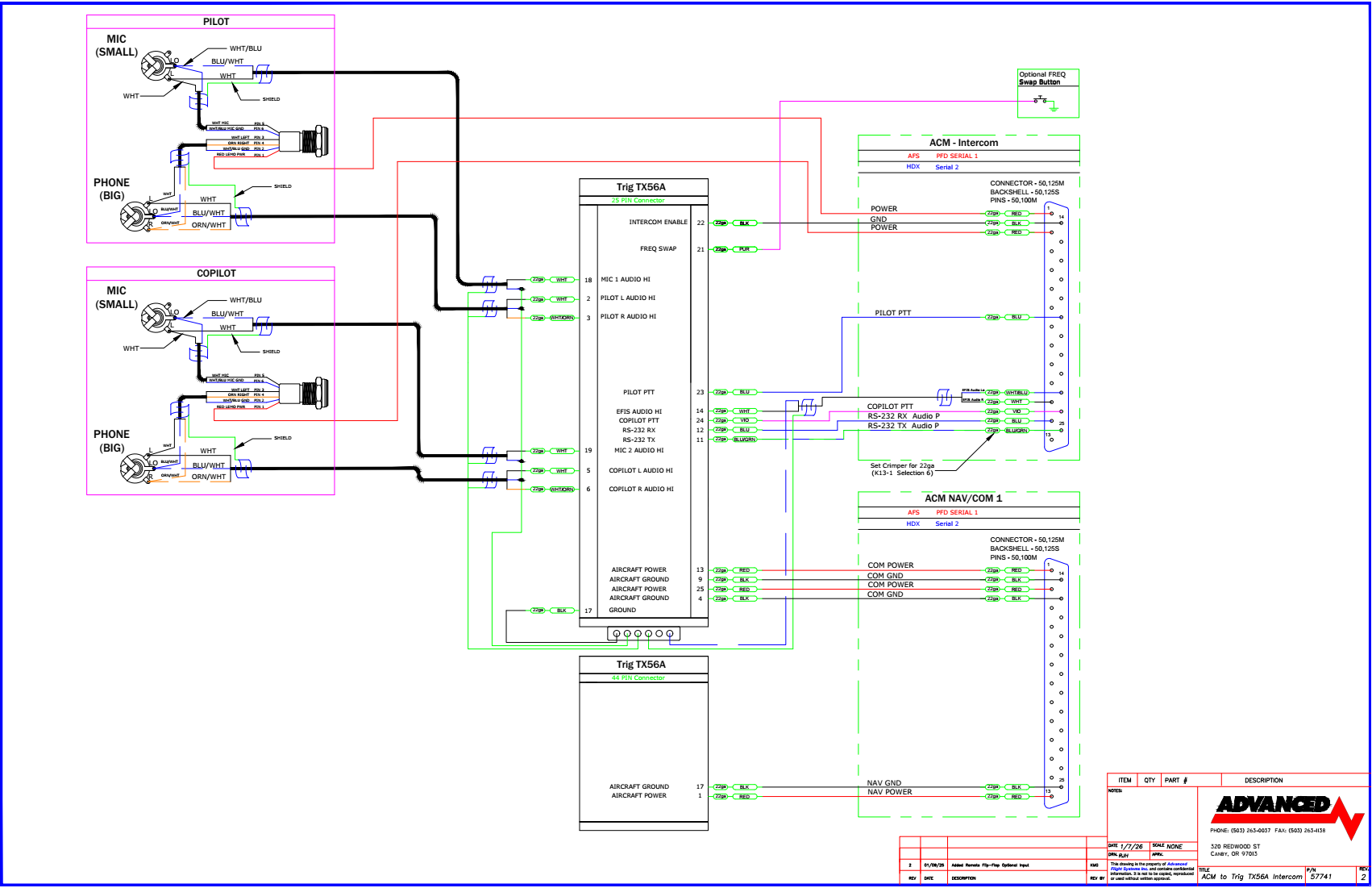

ACM to Trig TX56 NAV/COM with built-in intercom

57741 R2 ACM to Trig TX56 Nav-Com Intercom.pdf
300 KB Download
