57728 R1 ACM to Trig TX56 Nav-Com

April 02, 2024 18:56 Updated

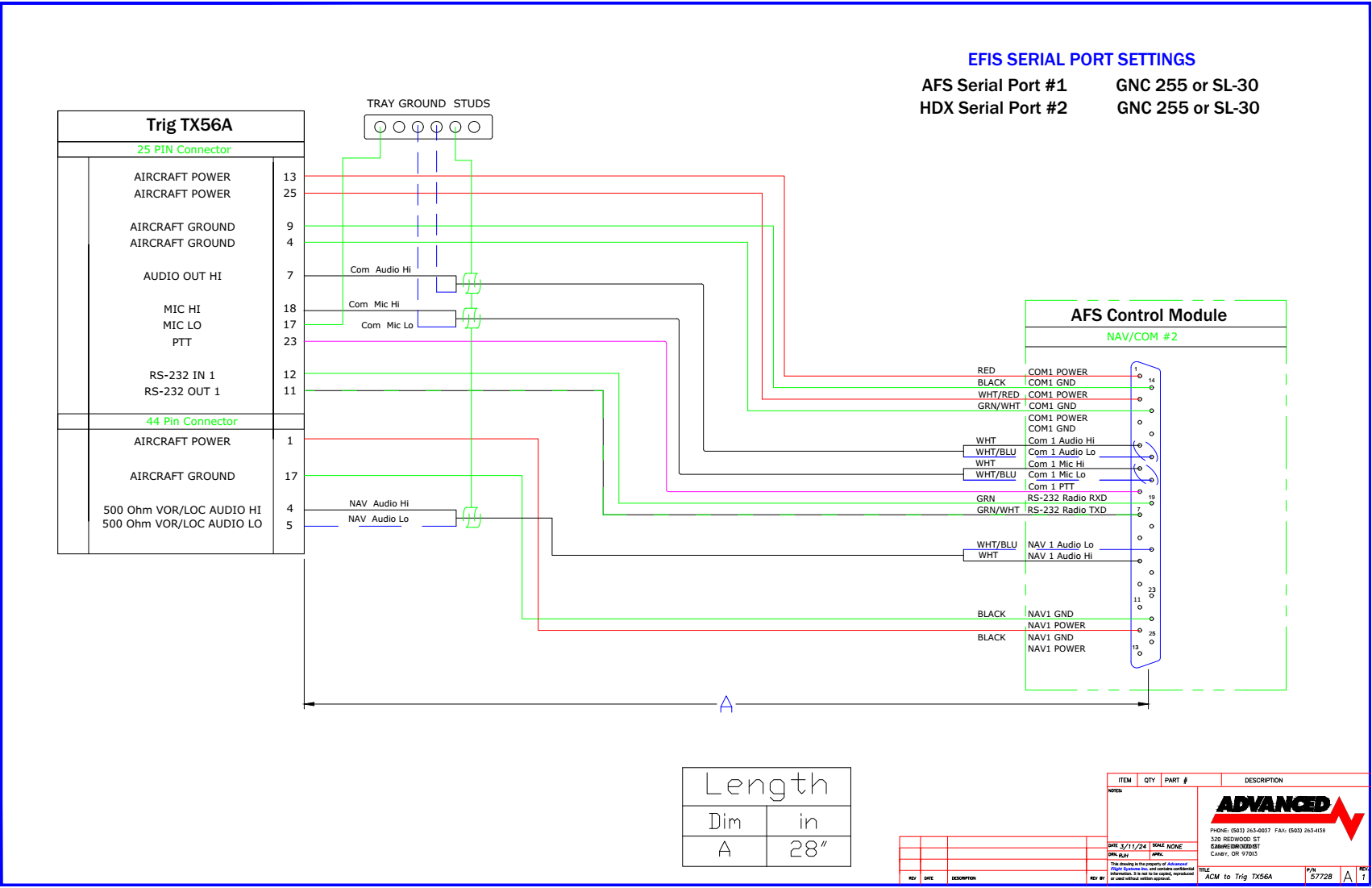

ACM to Trig TX-56 NAV/COM drawing.

57728 R1 ACM to Trig TX56 Nav-Com.pdf
300 KB Download
