57542 ACM to IFD and TCW Harness

May 06, 2024 20:54

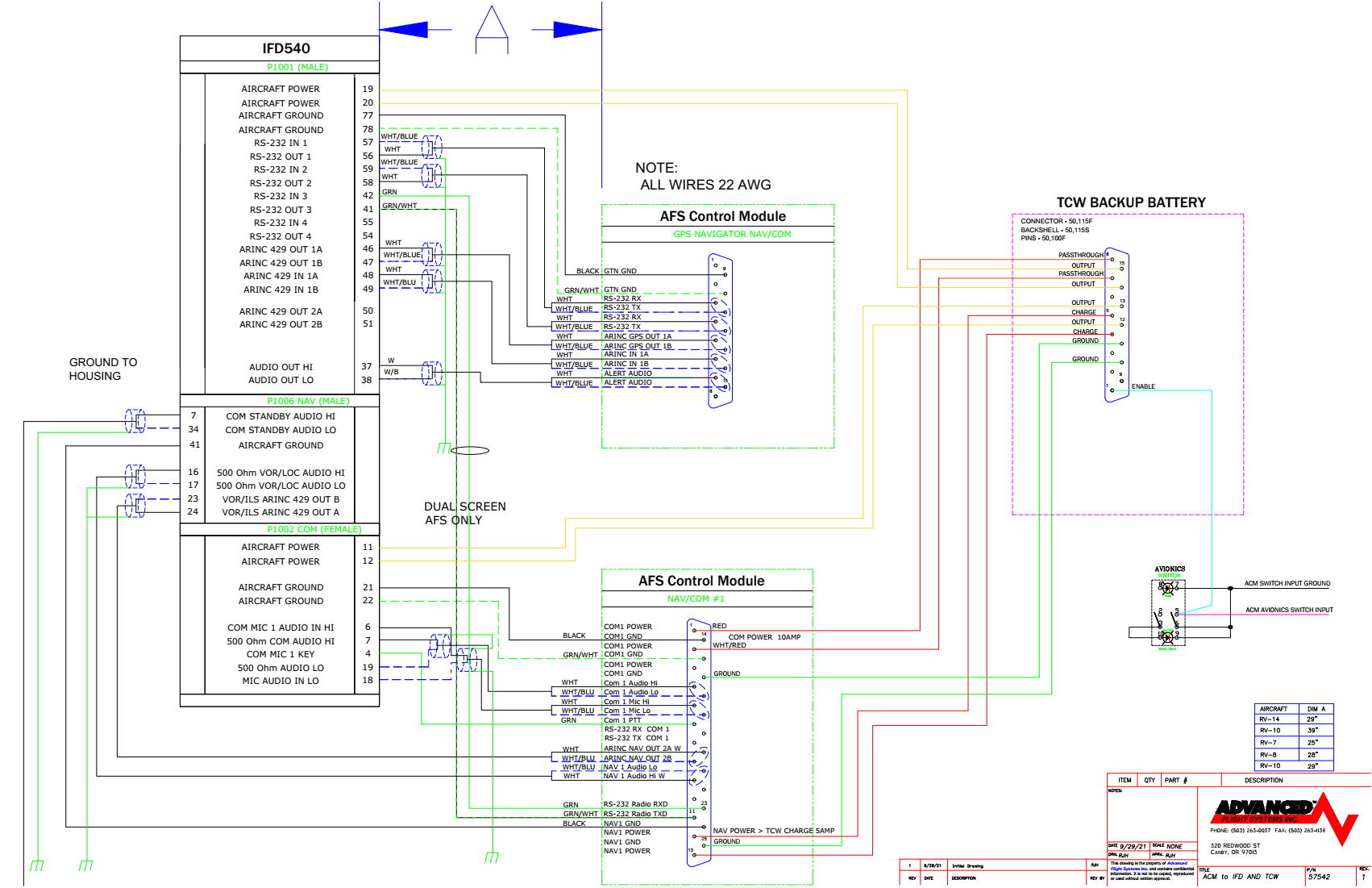

ACM to Avidyne IFD-440/540/550 navigator with TCW backup battery.

57542 ACM to IFD and TCW Harness.pdf
400 KB Download
