57315 R5 BackupEFIS (G5)

August 21, 2024 20:47

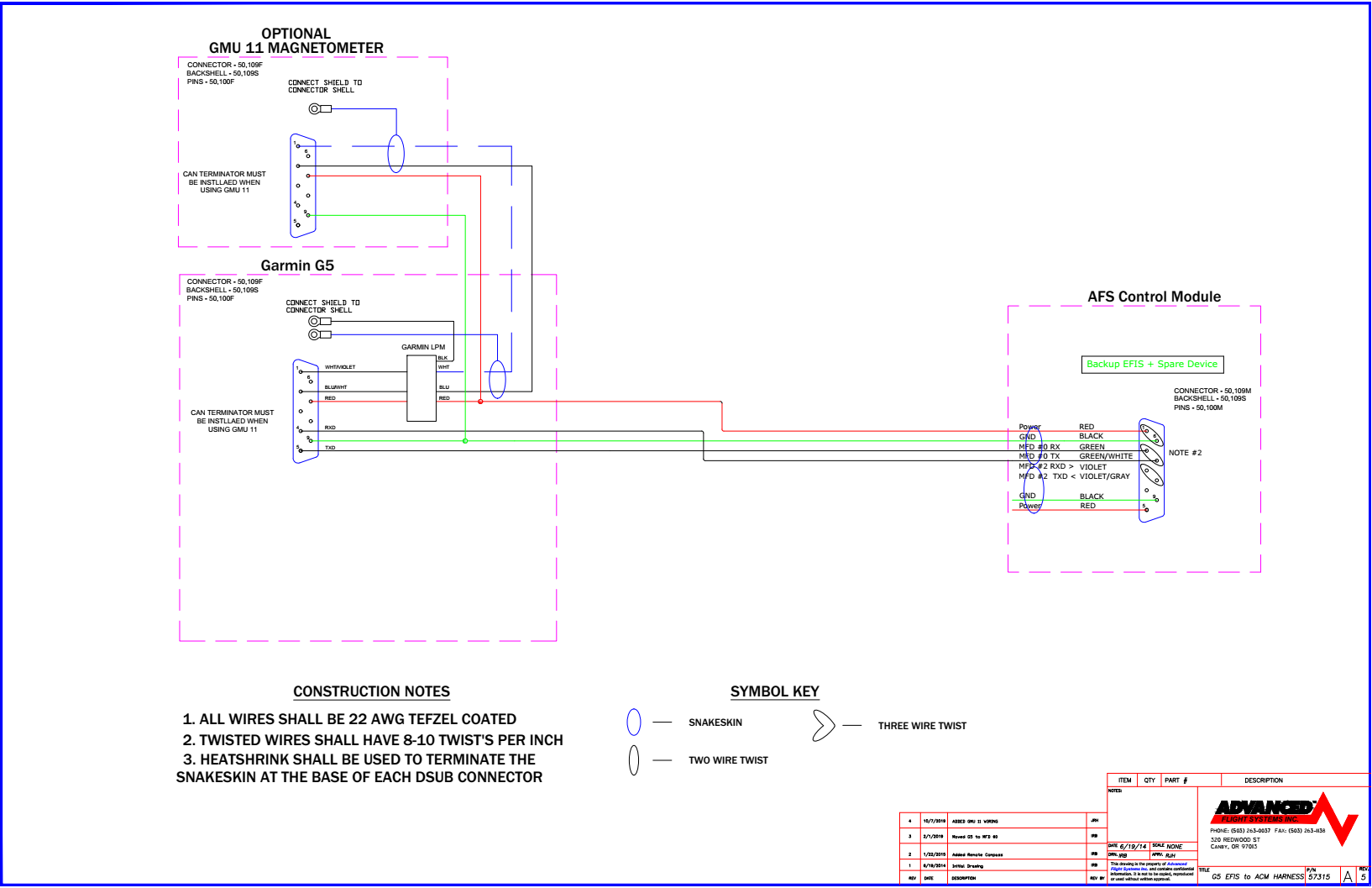

ACM to Garmin G5 backup EFIS

57315 R5 BackupEFIS (G5).pdf
300 KB Download
