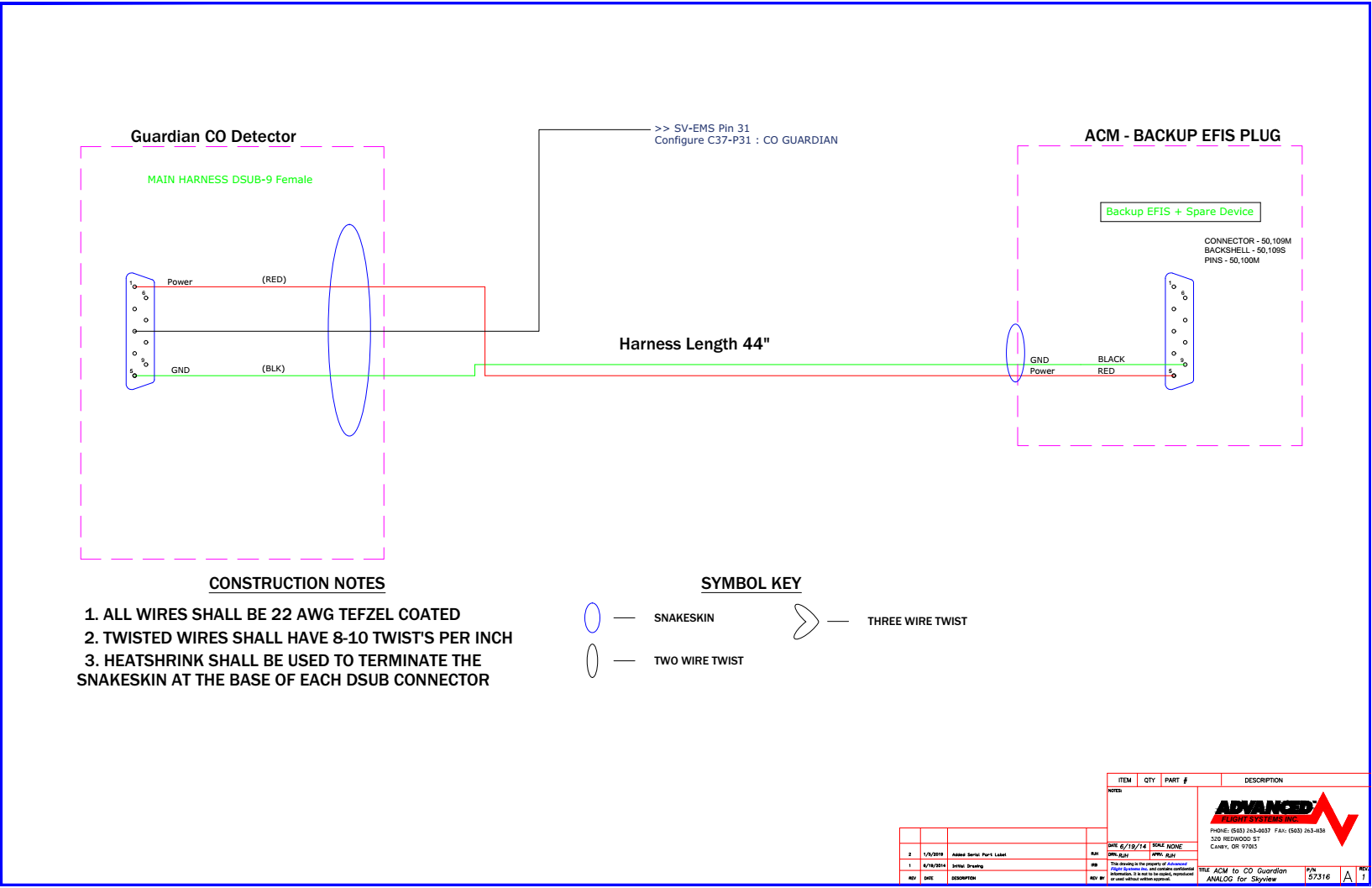

57316 ACM to CO Detector Skyview Harness

April 29, 2025 21:35 Updated

57316 ACM to CO Detector Skyview Harness.pdf
300 KB Download
