58214-003 R2 Harness-Autopilot Pitch & Roll

April 02, 2024 18:57 Updated

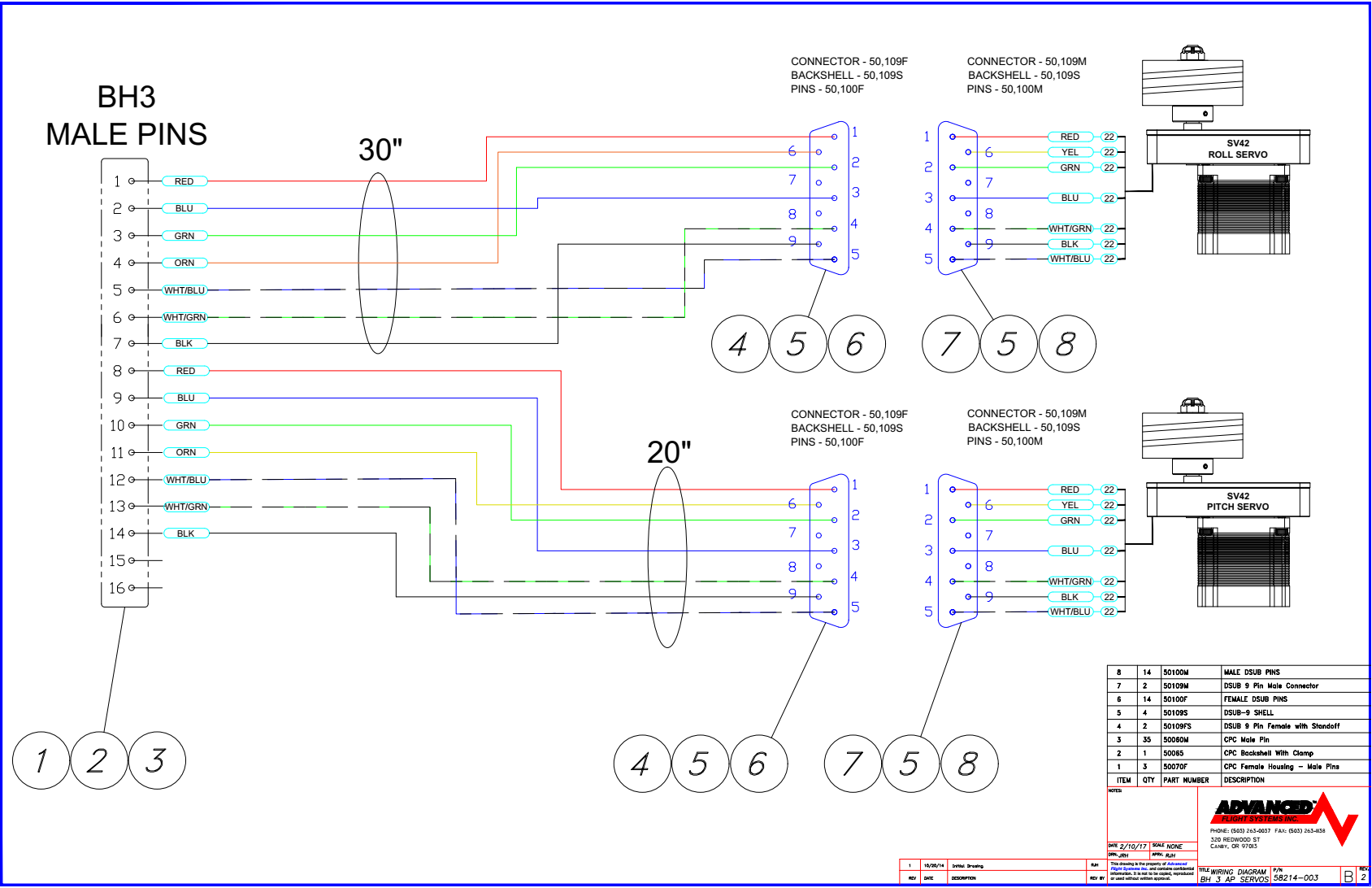

Glasair Sportsman TWTT AP servos to BH3 connector

58214-003 R2 Harness-Autopilot Pitch & Roll.pdf
400 KB Download
