58214-005 R5 Passenger Headset Wiring

April 02, 2024 18:57 Updated

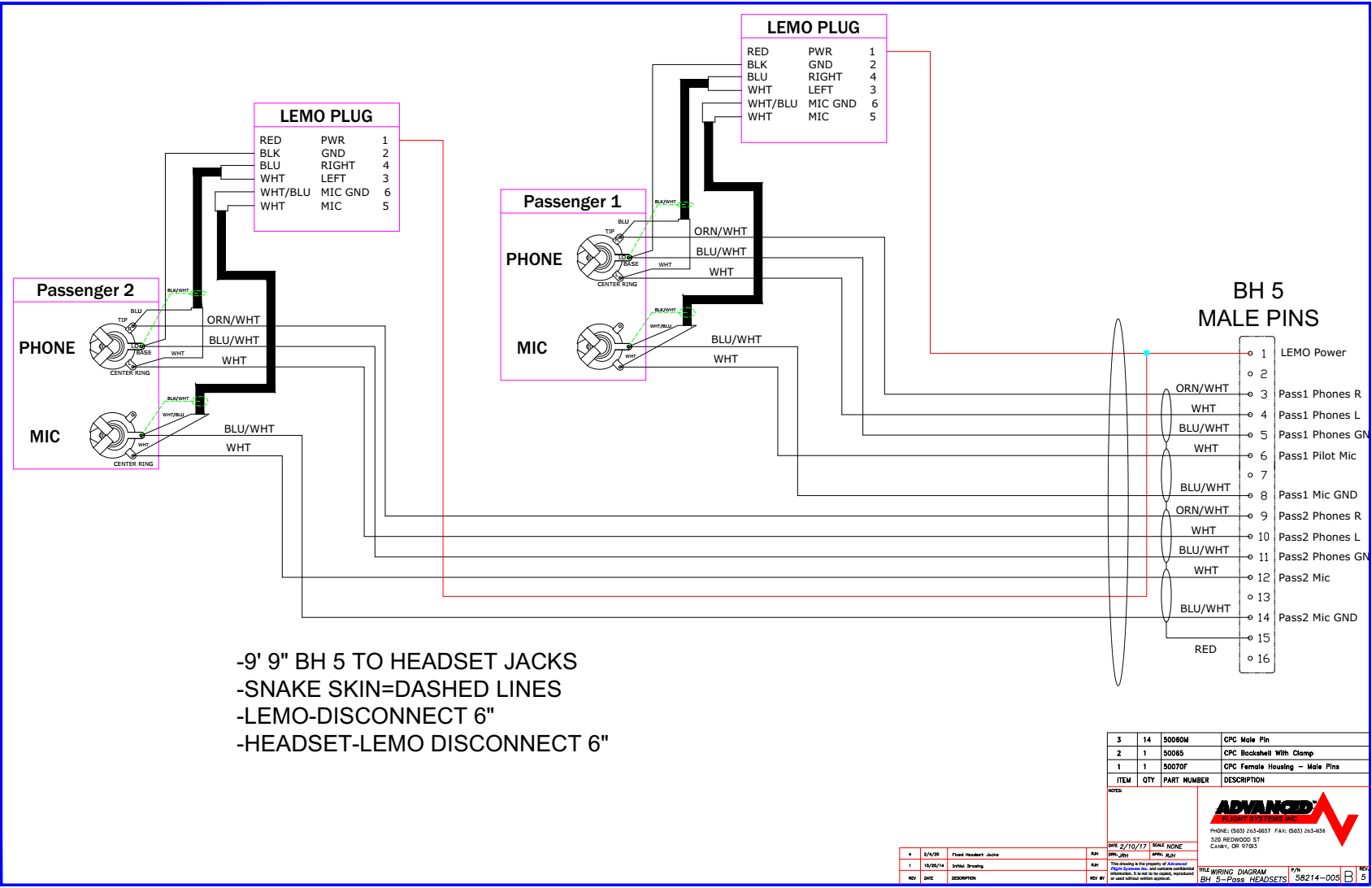

Glasair Sportsman TWTT rear seat headsets to BH5 drawing.

58214-005 R5 Passenger Headset Wiring.pdf
300 KB Download
