53406 R1 EMAG + SLICK Wiring

April 02, 2024 18:55 Updated

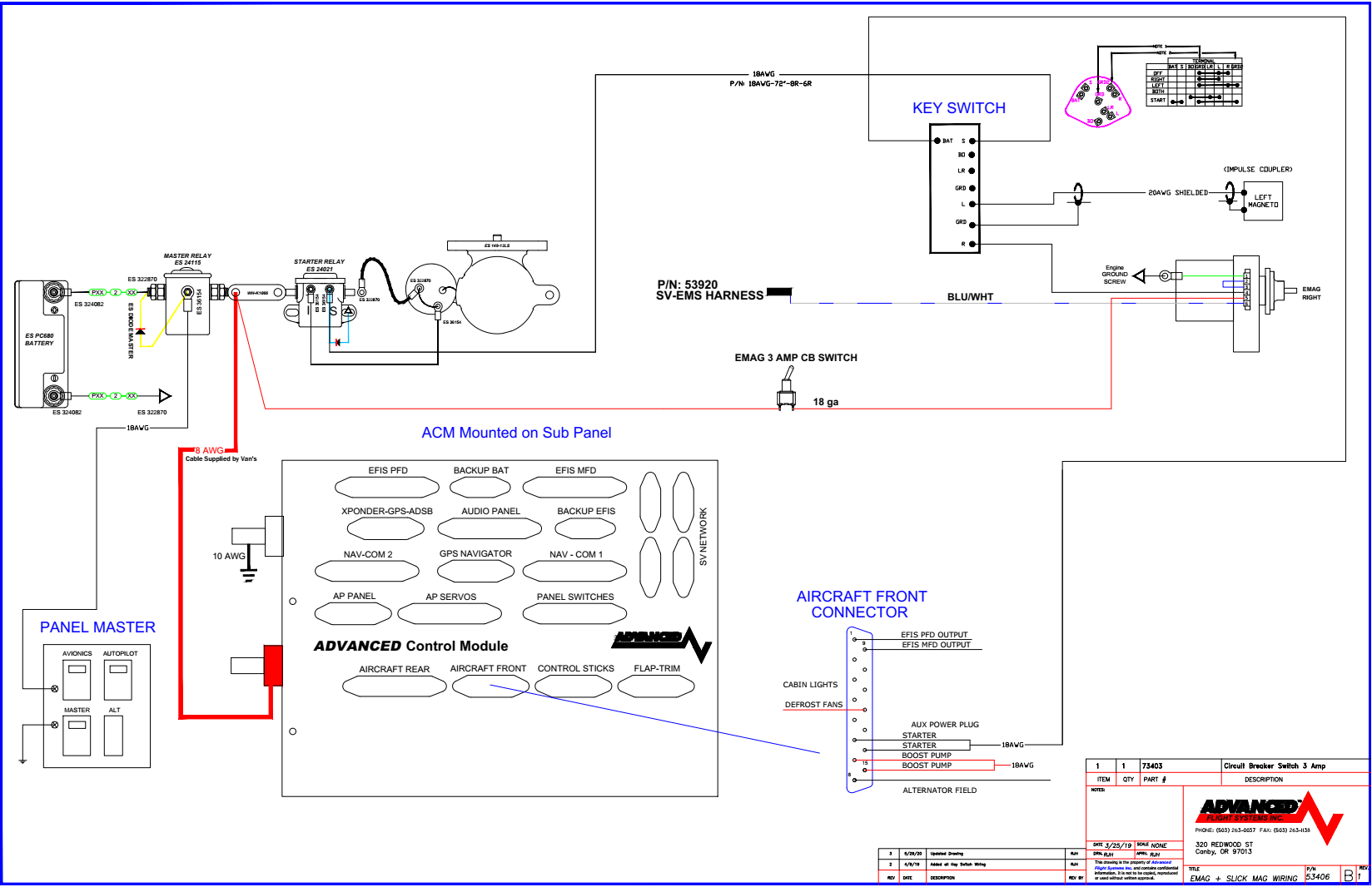

ACM Aircraft Front wiring with respect to one EMAG + one traditional magneto.

53406 R1 EMAG + SLICK Wiring.pdf
600 KB Download
