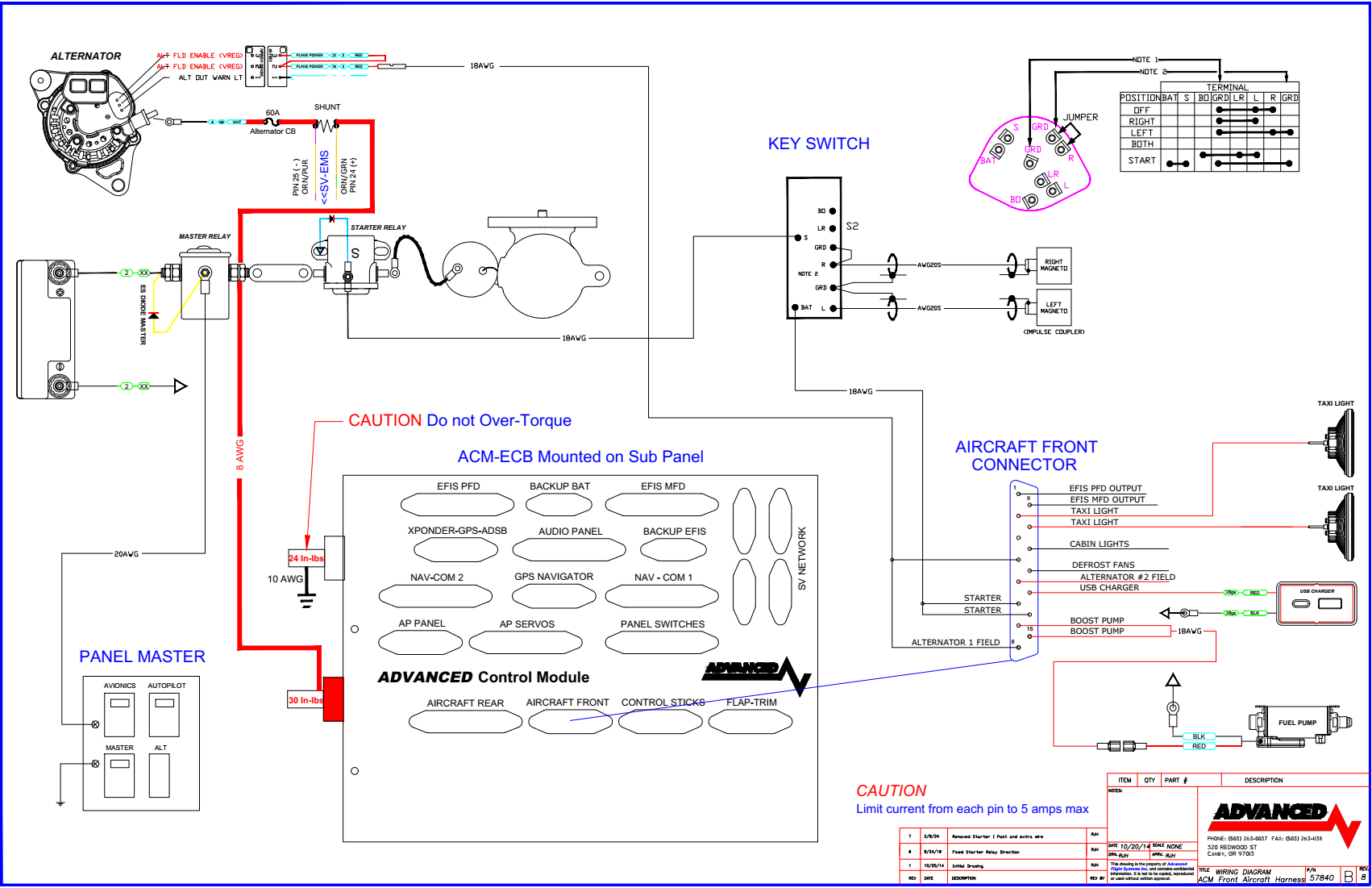

57840 R8 Aircraft Front Harness

October 15, 2025 23:48 Updated

General use ACM Aircraft Front wiring

57840 R8 Aircraft Front Harness.pdf
600 KB Download
