57853 RV-14 SV-Network Wiring

April 02, 2024 18:53 Updated

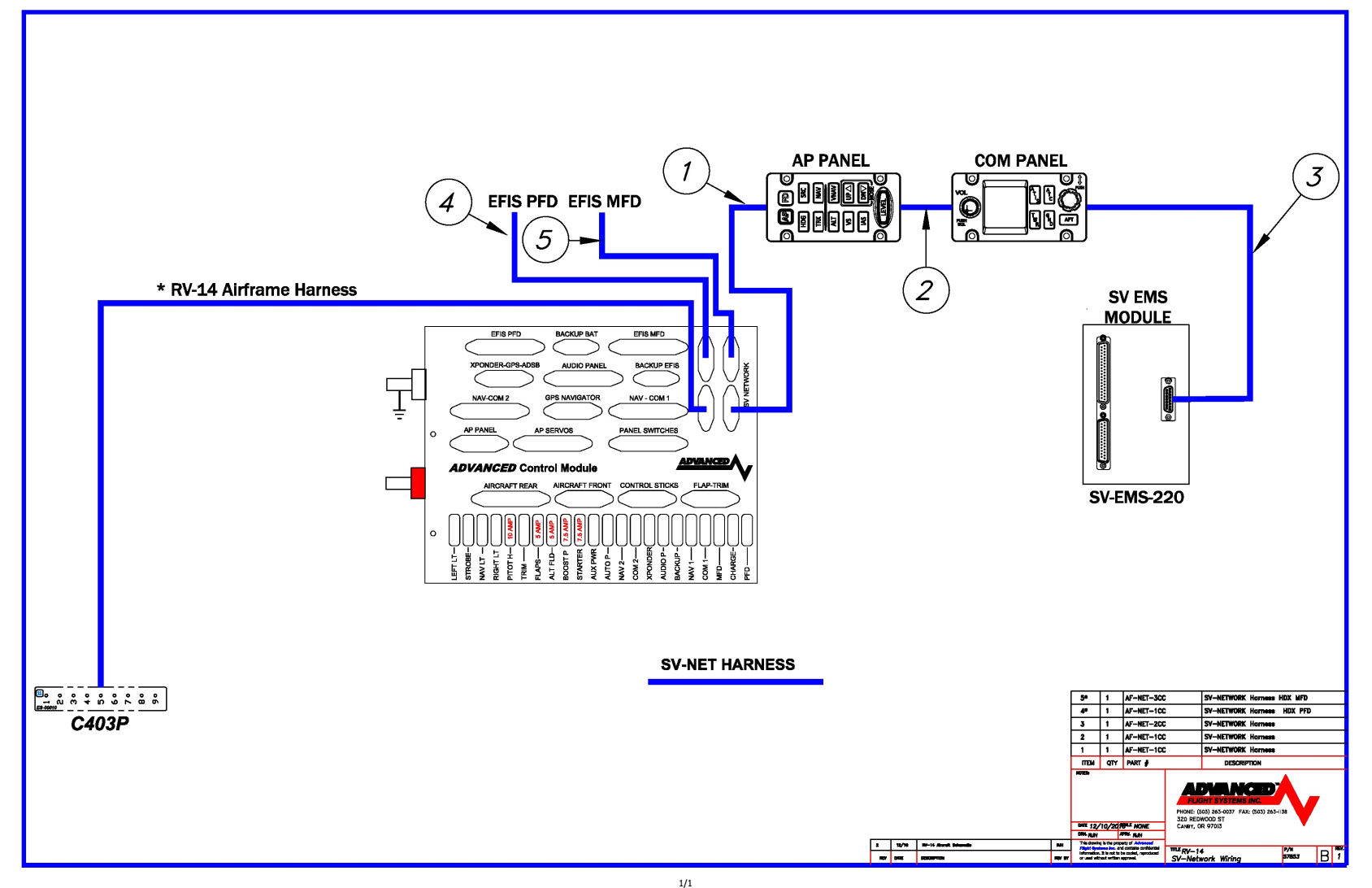

SkyView Network wiring overview for RV-14 with ACM

57853 RV-14 SV-Network Wiring.pdf
700 KB Download
