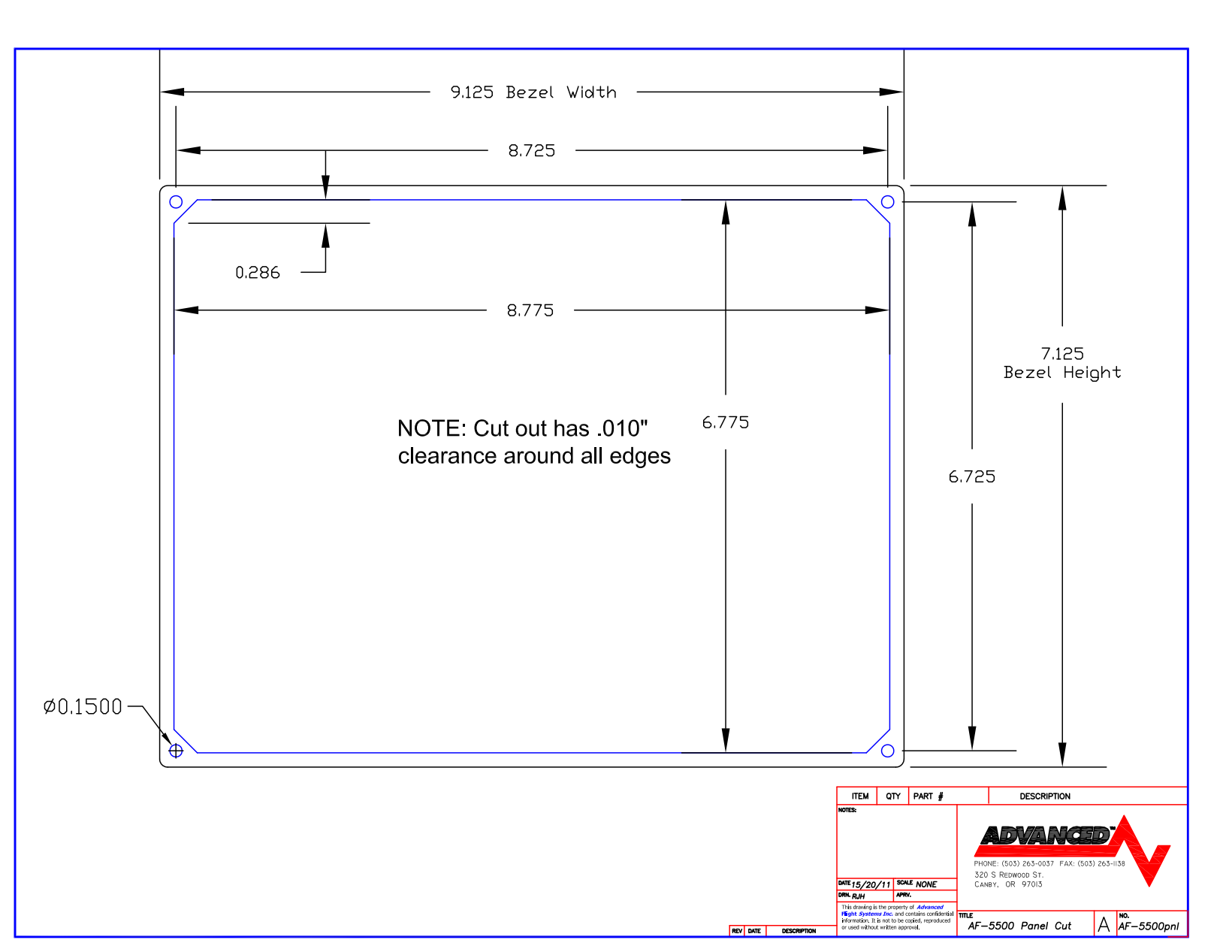

AF-5500 Drawings

April 01, 2024 18:28 Updated

AF-5500-Panel-Cut.pdf
60 KB Download
AF-5500_ACT_Size.pdf
400 KB Download
AF-5500-Panel-Cutout.dxf
400 KB Download
