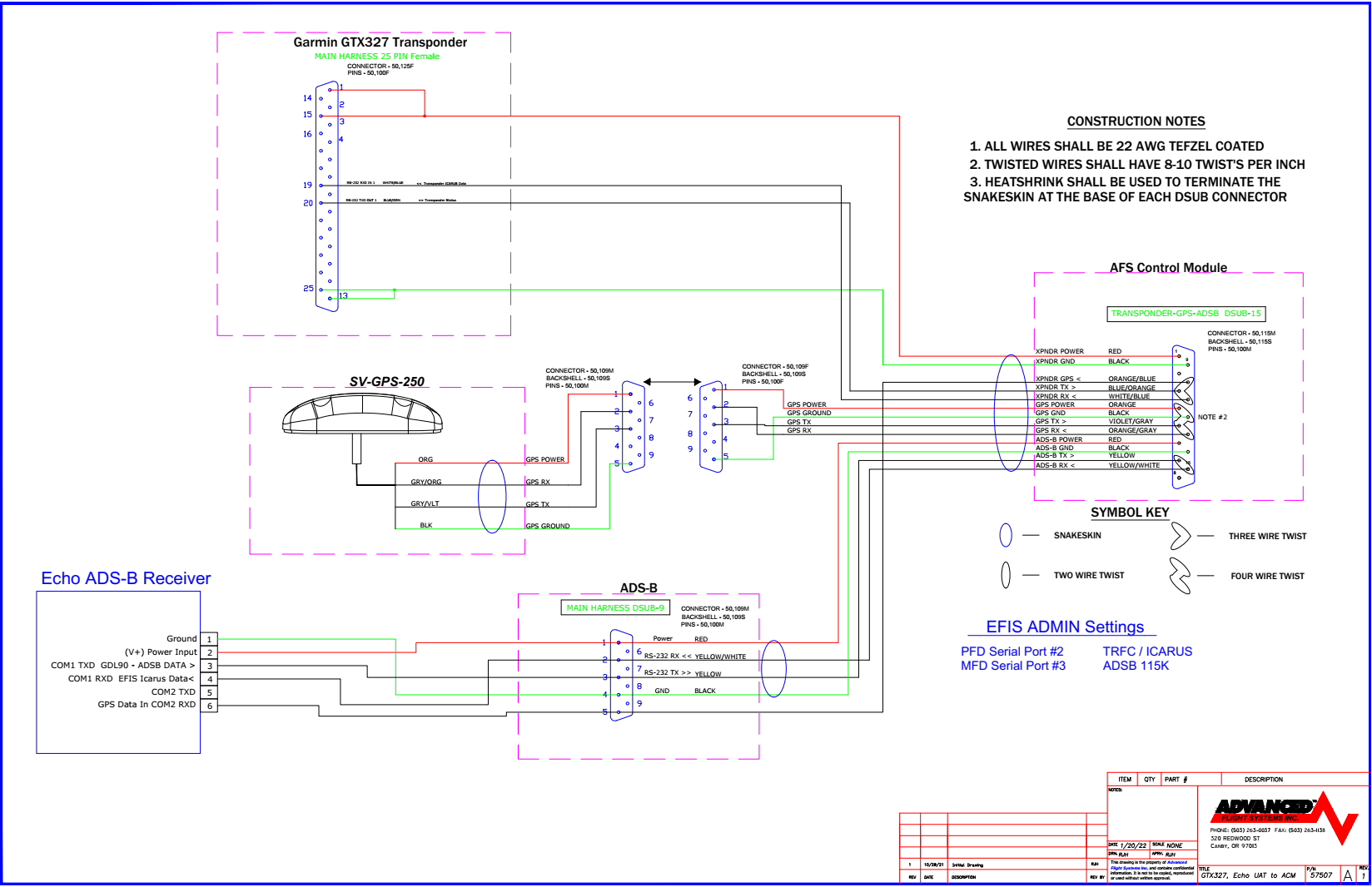

57507 R1 GTX327 EchoUAT to ACM Harness

April 09, 2025 21:59 Updated

57507 R1 GTX327 EchoUAT to ACM Harness.pdf
300 KB Download
