57733 R2 GTR 205 to ACM Intercom Harness

November 08, 2024 18:42 Updated

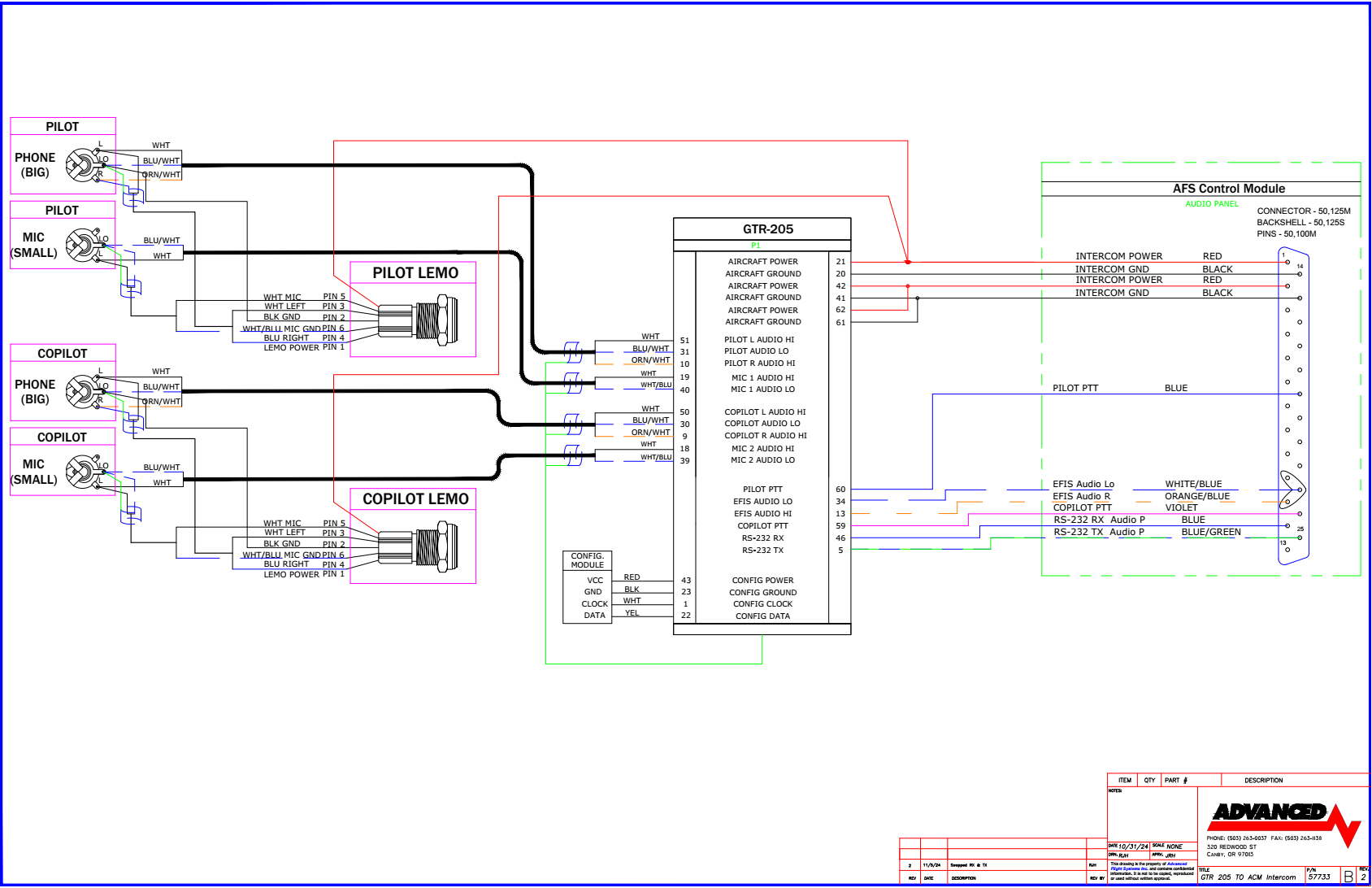

ACM to GTR 205 harness, using built-in intercom.

57733 R2 GTR 205 to ACM Intercom Harness.pdf
300 KB Download
