53914 R7 RV-14 SV EMS Wiring Diagram

53914 R7 RV-14 SV EMS Wiring Diagram

April 02, 2024 18:53 Updated

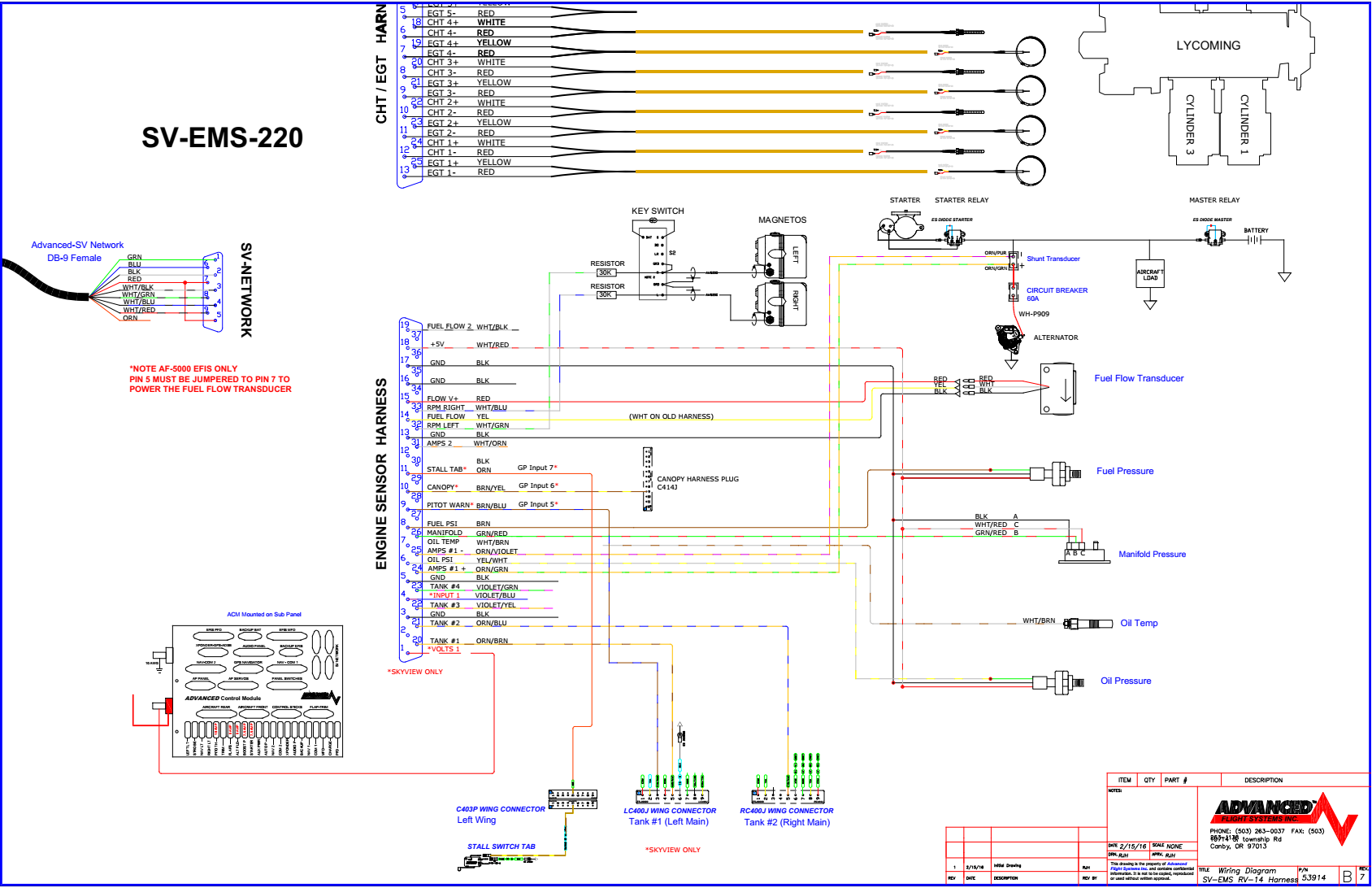

SV-EMS-220 wiring for RV-14 Advanced Panels.

53914 R7 RV-14 SV EMS Wiring Diagram.pdf
500 KB Download
