57720S ACM to SL30

April 02, 2024 18:56 Updated

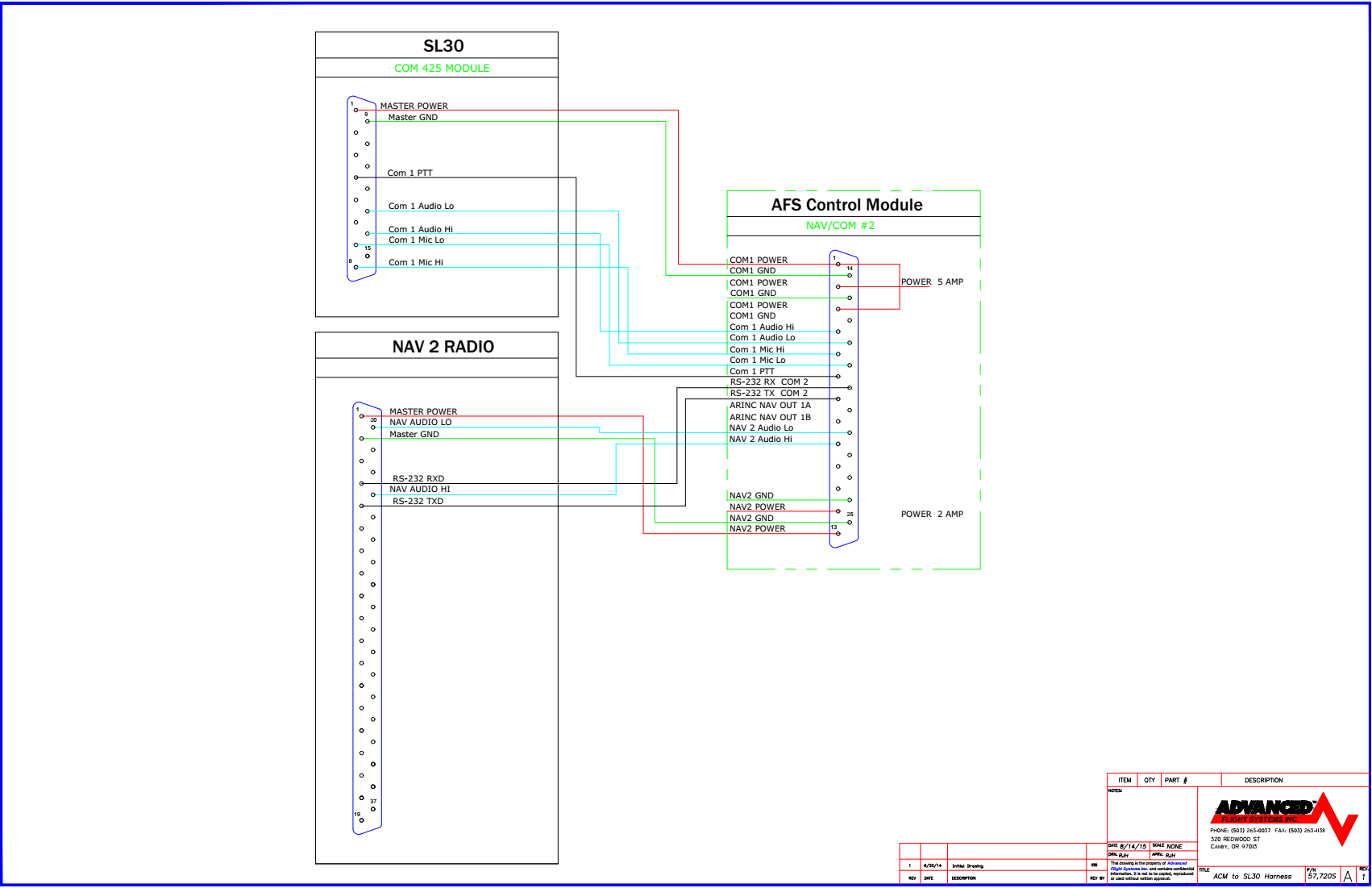

ACM to Garmin SL30 harness.

57720S ACM to SL30.pdf
300 KB Download
