57722 SL40 to ACM Harness

March 19, 2024 23:56 Updated

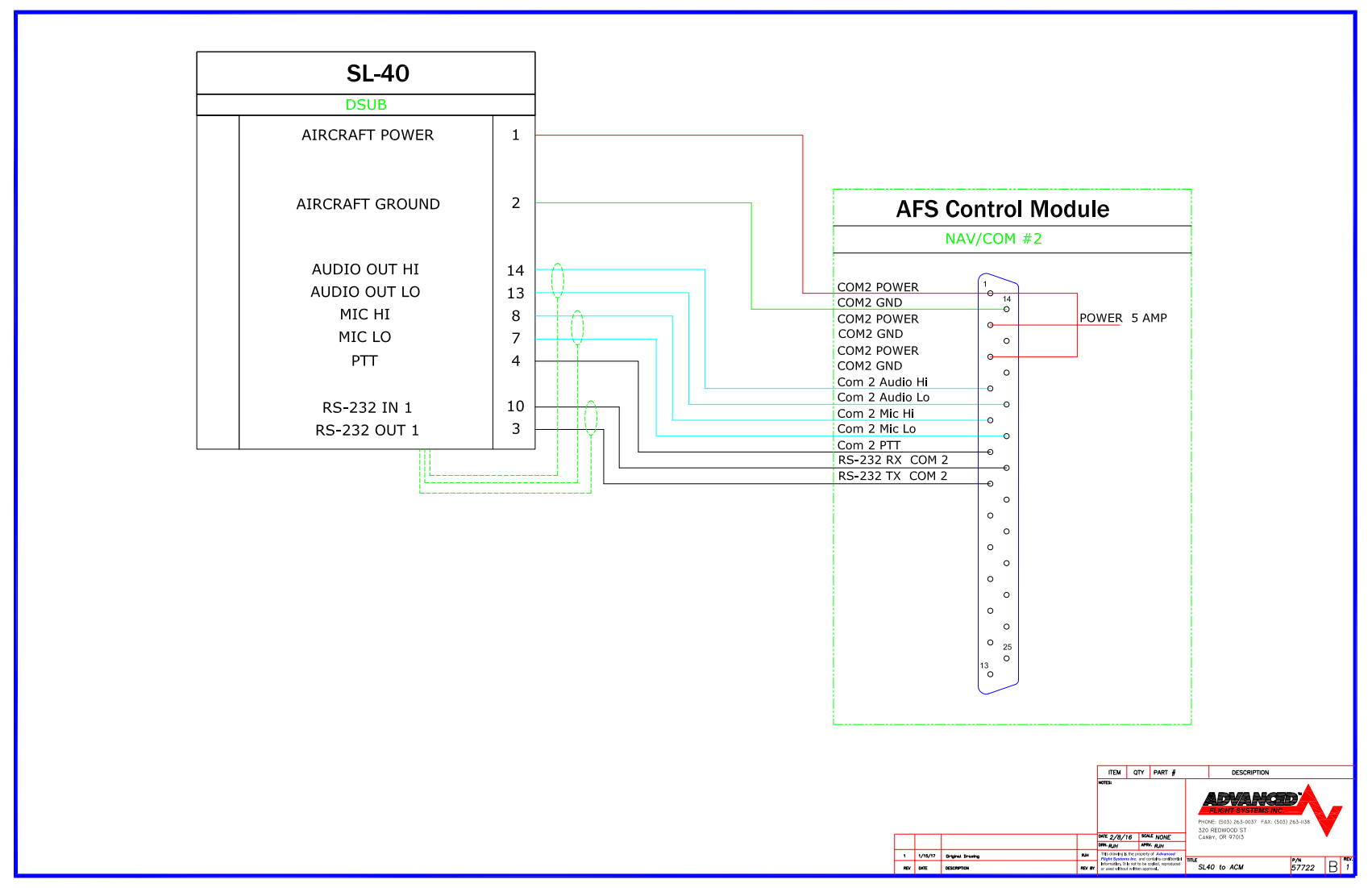

ACM to SL40 harness.

57722 SL40 to ACM Harness.pdf
80 KB Download
