57652 R4 Audio Panel Harness PAR200B

February 11, 2025 21:30 Updated

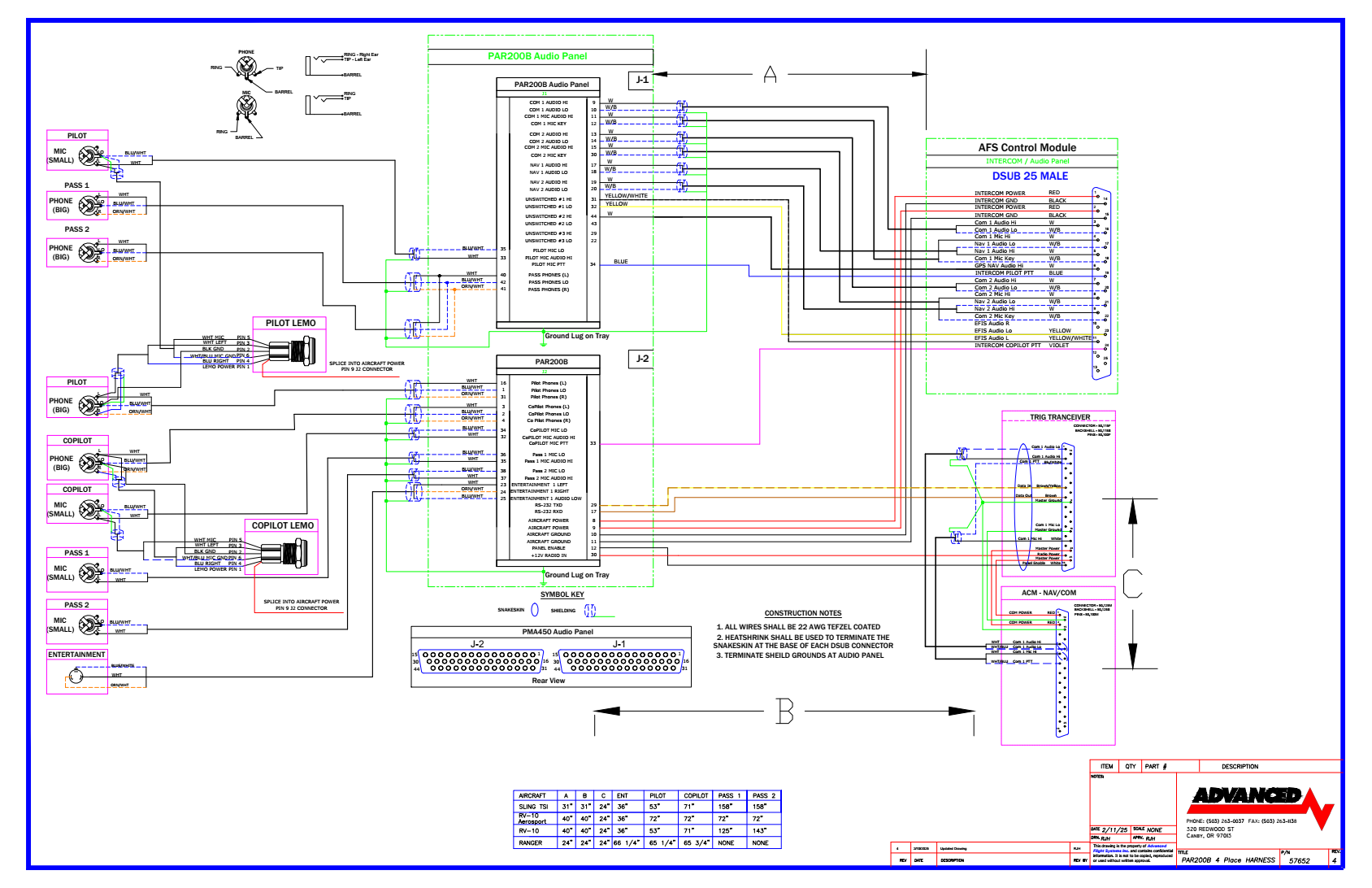

ACM to PS Engineering PAR200 audio panel + com harness.

57652 R4 Audio Panel Harness PAR200B 4 PLACE.pdf
400 KB Download
